Diesel Drive 27m Telescopic Boom Supported Elevating Work Platforms

Name: Diesel Drive 27m Telescopic Boom Supported Elevating Work Platforms
Brand: JESH
Price: 90000 USD

Buy cheap Diesel Drive 27m Telescopic Boom Supported Elevating Work Platforms product

Brand Name : JESH

Model Number : TB25

Certification : CE/ISO9001/EN280/ GB/T25849

Place of Origin : China

MOQ : 1

Price : 90000 dollars per set

Payment Terms : L/C, T/T

Supply Ability : 200sets

Delivery Time : 35

Lift drive / actuation : Diesel

Weight : 14400kg

Warranty : 2years for the machine 5year for parts

Table size : 2440*910

Color : green/customize

Rated loading capacity : 300kg

Max. lifting height : 27m

Contact Now

Diesel 25m Telescopic Boom Lift 27m Working Height AWPs MEWPs Manlift 300KG Loading Capacity

Product Discription:

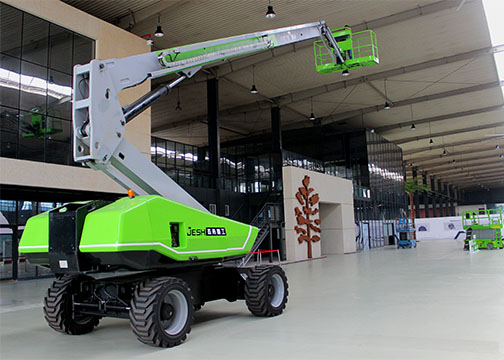

JESH telescopic boom lift can reach height at 27m, which suits for outdoor use on rough ground. Equipped with perfect security sensor, it delivers lower noise, superb maneuverability, higher working height with same numbers of scissor arms, which is ideal for confined space requesting high flexibility. Suitable for use on outdoor construction jobsites, as well as in facilities maintenance on uneven ground.

Model	TB25
	Dimension
Working height maximum	27.0m
Platform height maximum	25.0m
Horizontal reach maximum	19.1m
Below ground reach	1.0m
Platform width	0.81m
Platform length	2.2m
Height - stowed	3.01m
Length - stowed	13.0m
Length - transport	11.2m
Width	2.48m
Wheelbase	3.0m
Ground clearance - center	0.39m

Model	TB25
Standard Configuration	Optional Configuration
• Proportional control	• Air line to platform
• Extended platform	• AC power to the platform
• Charging protection	(including sockets, leakage protection)
• Automatic braking	• Platform work light
• Tilt sensor with alarm
• Fault diagnosis
• Emergency lowering
• Emergency stop
• Pothole protection
• Foldable guardrails
• Flashing beacon
• Hour meter
• Self-lock gate
• Action Buzzer
• Safety brackets
• Trackless tire
4x2 double front wheel hydraulic drive
Horn
• Tubing explosion-proof system
• Standard forklift hole
• 4 6V/170Ah maintenance-free batteries
• GPS tracking system

Diesel Drive 27m Telescopic Boom Supported Elevating Work Platforms

Company Introduction:

Hunan JESH Heavy Industry Co.,Ltd has strong R&D ability , in-depth researching on aerial working equipment, and there are innovation in mechanical structure, hydraulic system, electrical control, and a number of invention patents, appearance patents and utility model patents. All of the products have been gone through stability and limited working condition calculation; and fatigue test has been carried out on each model to ensure the reliability and safety of the products.
