Mobile electric elevated work platform 14m scissor lift with 320kg capacity

Name: Mobile electric elevated work platform 14m scissor lift with 320kg capacity
Brand: JESH
Price: 80000 USD

Buy cheap Mobile electric elevated work platform 14m scissor lift with 320kg capacity product

Brand Name : JESH

Model Number : AB14J

Certification : CE/ISO

Place of Origin : China

MOQ : 1 unit

Price : US$80000-US$140000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per year

Delivery Time : 10-30days

Packaging Details : packed as per internaitonal export standard.

Feature : self propelled scissor lift

Max.working height : 14.8m

Max.lifting platform height : 12.8m

Material : High impact steel structure

platform capacity unrestricted : 320kg

Power : Hydraulic motro

Platform size : 2.36*1.12*1.27m

Overall Dimensions : 2.48*1.15*2.61m

Control : Control Box

Engine : Optional( perkins, Kohler,Deutz,Commins,Yanmar)

Contact Now

Aerial working platform scissor lifts of HL series include two models of SS1112HL,SS1312HL, with working height of 13m to 15m. The platform uses battery to drive the hydraulic motor to save energy and environmental protection, It is suitable for indoor flat ground and aerial working environment with high environmental requirements.

Main Specs:

Working Height: 14.8m
Max.platform height:12.8
S.W.L:320kg

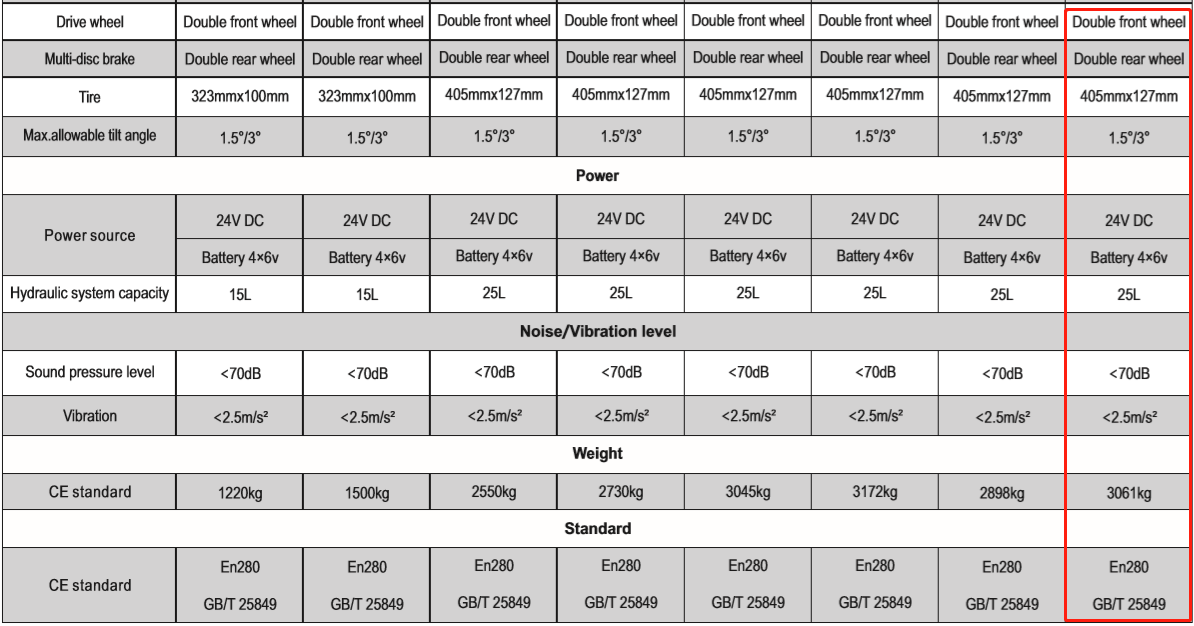

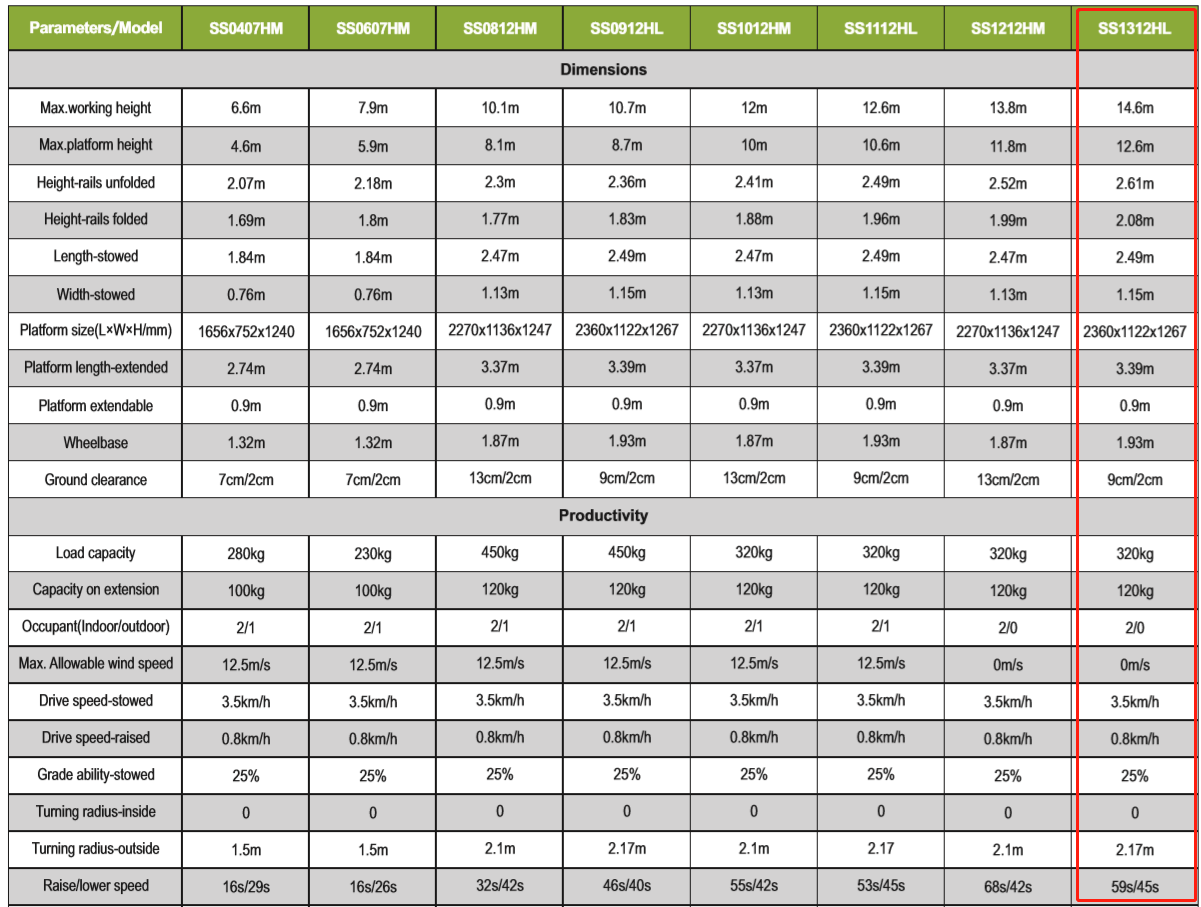

Technical Parameters:

Model	SS1312HL
Dimentions	Metric
Working Height	14.8m
Platform Height	12.8m
Platform Length	2.36m
Platform Length-Extended	3.26m
Platform Extension	0.9m
Platform Width	1.10m
Height -Unfolded	2.61m
Height-folded	2.08m
Wheelbase	1.93m
Min. Ground Clearance-stowed	10cm
Min. Ground Clearance-Raised	2cm
Productivity
Platform capacity	320kg
Extension platform capacity	120kg
Drive Speed	3.5km/h
Gradeability	40%
Raise/Lower Speed	59/45sec
Turning Radius(Inside/outside)	0/2.17m
Tire	40.5x12.7cm
Power	Electric
Engine	Bettery 24V/260Ah
Hydraulic Oil Tank Capacity	25L
Machine Total Weight	3061kg
